Side loading is an efficient way to load or discharge unitised cargo, pallets and paper rolls is by the shortest possible path to recude the turn around in harbour.

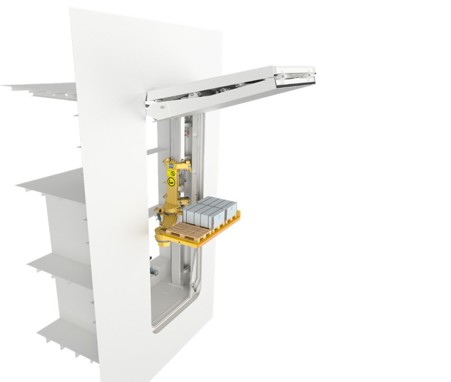

Side Mover
The MacGregor side mover system has SWLs for one lift range from 2–8 tonnes. The system is ideal for smaller dry cargo ships and offers the possibility of tandem operation of the lifts for handling long cargo.
The side mover has a fixed guiding column for the lift. The lift comprises a wheel frame with an articulated lever system between the frame and the platform.
Benefits:
- Compact design in the ship structure
- Ideal for operation on quay with limited area
- Suitable for smaller loads
- Handles large tide differences and drafts
- Double lane and independent routing
- Single /dual lift
- Tandem operation available
- Standard system SWL up to 4,5T
- Different types of side door designs are available
- Side door form a shelter against rain
- Tailor Made solution for optimal operation to each ship design
- The elevator platform does reach well into the query area for efficient loading/unloading by forklift truck
- Elevator operation by forklift truck operator

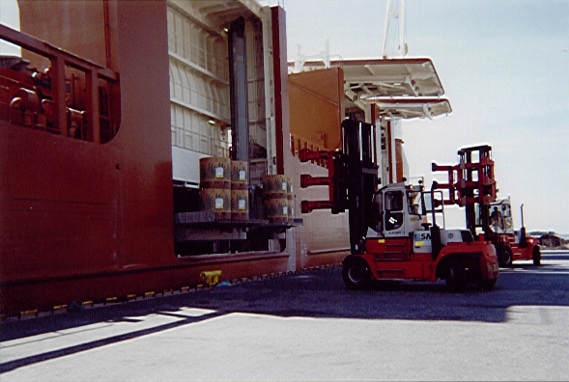

Side Swinger
The MacGregor side swinger system has SWLs for one lift range from 4–20 tonnes.
Benefits:
- Compact design in the ship structure
- Suitable for larger loads Swl >10t
- Handles large tide differences and drafts
- Double lane and independent routing
- Different types of side door designs are available
- Side door form a shelter against rain
- Tailor Made solution for optimal operation to each ship design
- The elevator platforms do reach well into the query area for efficient loading/unloading by forklift truck
- Elevator operation by forklift truck operator
- Forklift truck handling from quey/deck and between internal decks
- From closed side door to operation of elevators in a short time
- Elevators for cargo handling only and no personal transport

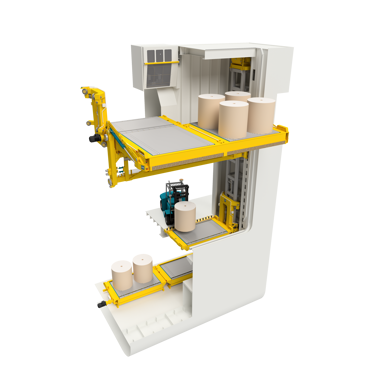

Conveyor system
The MacGregor side loading conveyor system has a SWLs range from 6–20 tonnes.
The system offers the possibility of installing an outer platform that can be used for larger tidal variations and is also ideal for reefer ships.
Benefits:
- Double lane and independent routing
- High capacity system, 3-buffer zones:
- Inside/ Outside loading platform
- Elevator
- Also available with an elevator on the loading platform.
- Suitable for larger loads Swl >10t
- Counterbalanced elevator reduces power consumption
- Handles large tide differences and drafts
- Different types of side door designs are available
- Side door form a shelter against rain
- extra optional elevator on the loading platform, for operation in more extreme tide variations and draughts (Reefer vessels)
- Tailor Made solution for optimal operation to each ship design
- Fully automatic operation
- Forklift truck handling from quey/deck and between internal decks
- Elevators for cargo handling only and no personal transport
- The sideloading conveyor system can be supplied with single, double or triple transport lines, each line comprising one lift with a conveyor on each deck level and a common loading platform with conveyors for on- and offloading from the shoreside.

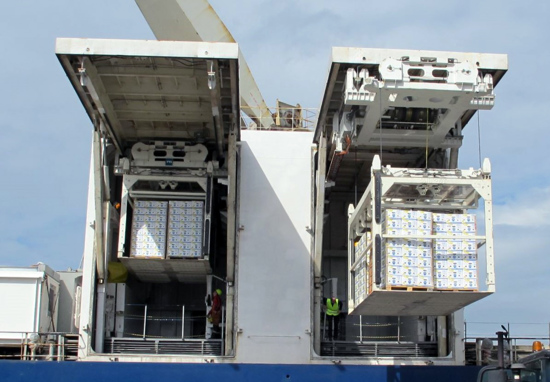

Cage type
The MacGregor Cage loading system has a SWLs range from 6–20 tonnes.
It adjust to tidal variations and is also ideal for reefer ships. The system enabling using the complete cargo space for storing cargo and to optimizing the cargo trades on each route.
Benefits:
- Flexible cargo handling
- Can handle different types of cargo for different needs. For example one way loading boxes and pallets and on the return with vehicles such as cars.
- Tailor Made solution for optimal operation to each ship design
- Fully automatic operation
- Forklift truck handling from quey/deck and between internal decks
- Elevators for cargo handling only and no personal transport

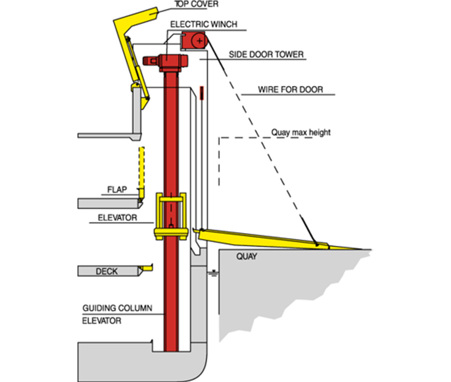

Ramp solution
The MacGregor Ramp system offers a reliable and robust loading system for variating quay heights.
The Ramp can be adjusted to different height levels enabling forklifts to load directly onto the lifting platforms serving the different decks in vessel cargo space.
Safe loading/unloading of elevators also when more swell in the harbor, as forklift trucks are standing on the side door ramp when loading /unloading the elevators.
Benefits:
- 2,0 -12 T SWL
- Safe loading/unloading of elevators also when more swell in harbor, as forklift trucks are standing on the side door ramp when loading /unloading the elevators.
- Tailor Made solution for optimal operation to each ship design
- Elevator operation by forklift truck operator
- Forklift truck handling from quey/deck and between internal decks
- Elevators for cargo handling only and no personal transport
- Sideloading system is designed for handling long cargo too, three cargo lines can be established, by loading/unloading directly to/from a flap cover arranged between the cargo elevators.
